ECG patches, pulse oximeters, blood pressure monitors, blood glucose meters... most of these devices talk to the outside world over Bluetooth (BLE). But BLE alone can't travel far, and it can't reach the cloud on its own. The unassuming piece of hardware that actually gets this data "out of the ward and into the cloud" is the gateway sitting in between.

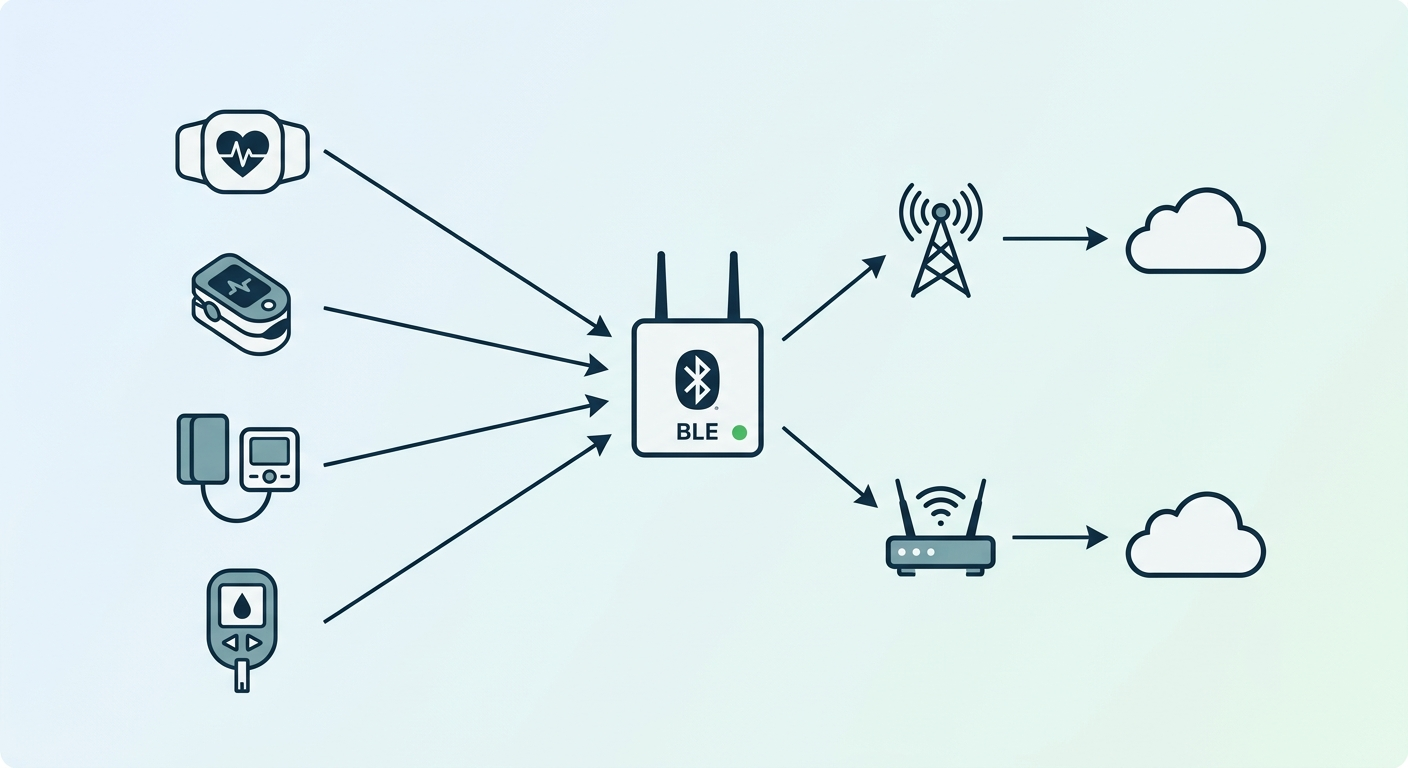

Whatever the brand or model, BLE data gateways on the market essentially boil down to two paths:BLE-to-4GorBLE-to-WiFi. Both types solve the same underlying problem, but they represent two completely different deployment philosophies — one built for mobility, one built for staying put. Pick the wrong type, and no matter how many devices you connect, you'll hit a wall once you try to deploy it in the real world.
BLE-to-4G Gateways: No Dependence on Local Networks, Plug In and Go
The core logic here: end devices (ECG patches, pulse oximeters, temperature patches, etc.) send data to the gateway over BLE, and the gateway forwards it to a designated server over the 4G network, typically supporting communication protocols like MQTT, LwM2M, HTTP, and others.
Its biggest value is that it doesn't depend on local network infrastructure. Many scenarios — community clinics, home-based elder care, temporary medical sites — simply have no stable WiFi coverage, or their IT infrastructure is too weak to guarantee network quality. This type of gateway just needs power and a 4G signal to work; it doesn't need to integrate with any local network environment.

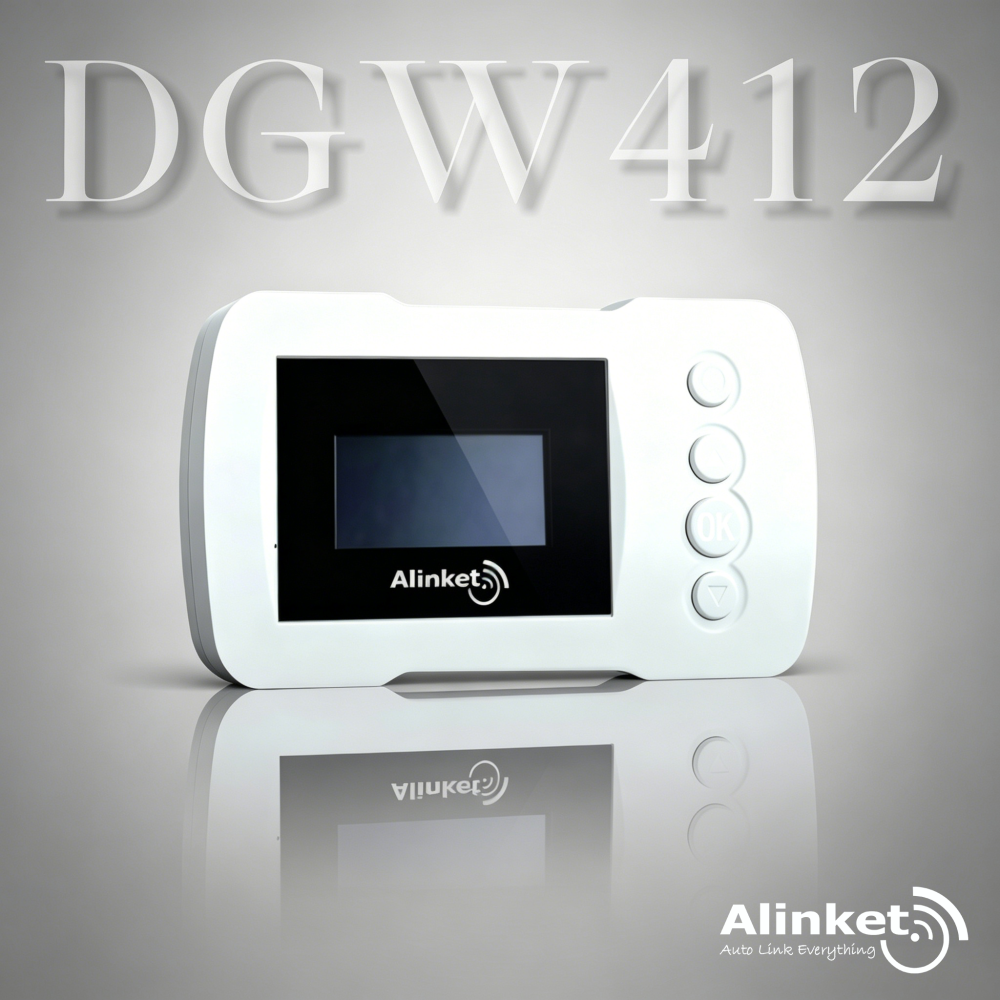

Take Alinket'sDGW412as an example: it uses BLE 5.0 — a relatively newer Bluetooth version with theoretically lower power consumption and faster transfer rates — paired with Cat 1 4G, supporting all major Chinese carriers (China Telecom/Mobile/Unicom). This isn't an isolated design choice: the DGW412 packs a built-in 3000mAh rechargeable lithium battery, officially rated for up to 24 hours of continuous operation, following a "mobile use" product logic — the more power-efficient the end device, the longer the gateway's battery lasts, and the two are designed to work together. It also comes with an OLED display for real-time on-device status, which makes field debugging and troubleshooting considerably easier.
Devices currently verified as compatible with the DGW412-class gateway:

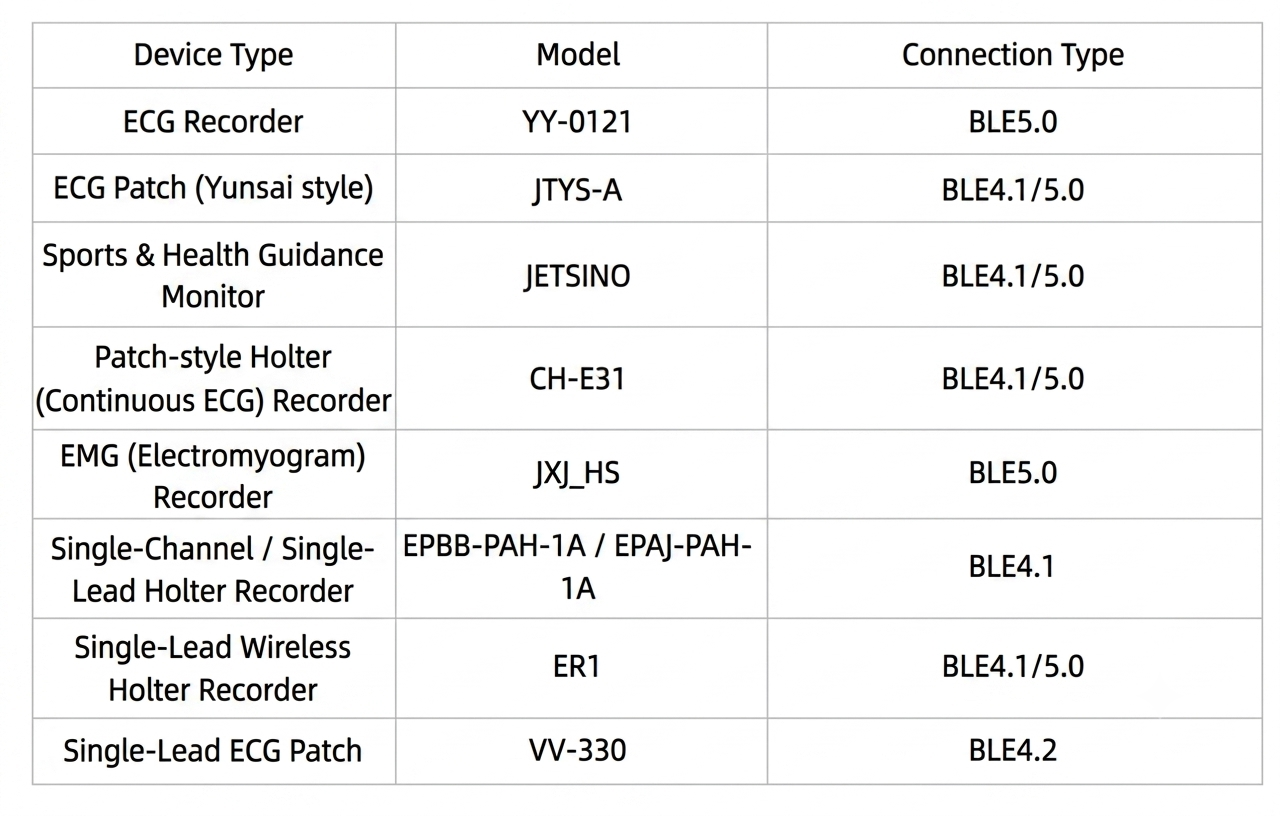

ECG / EMG devices (the broadest coverage category)

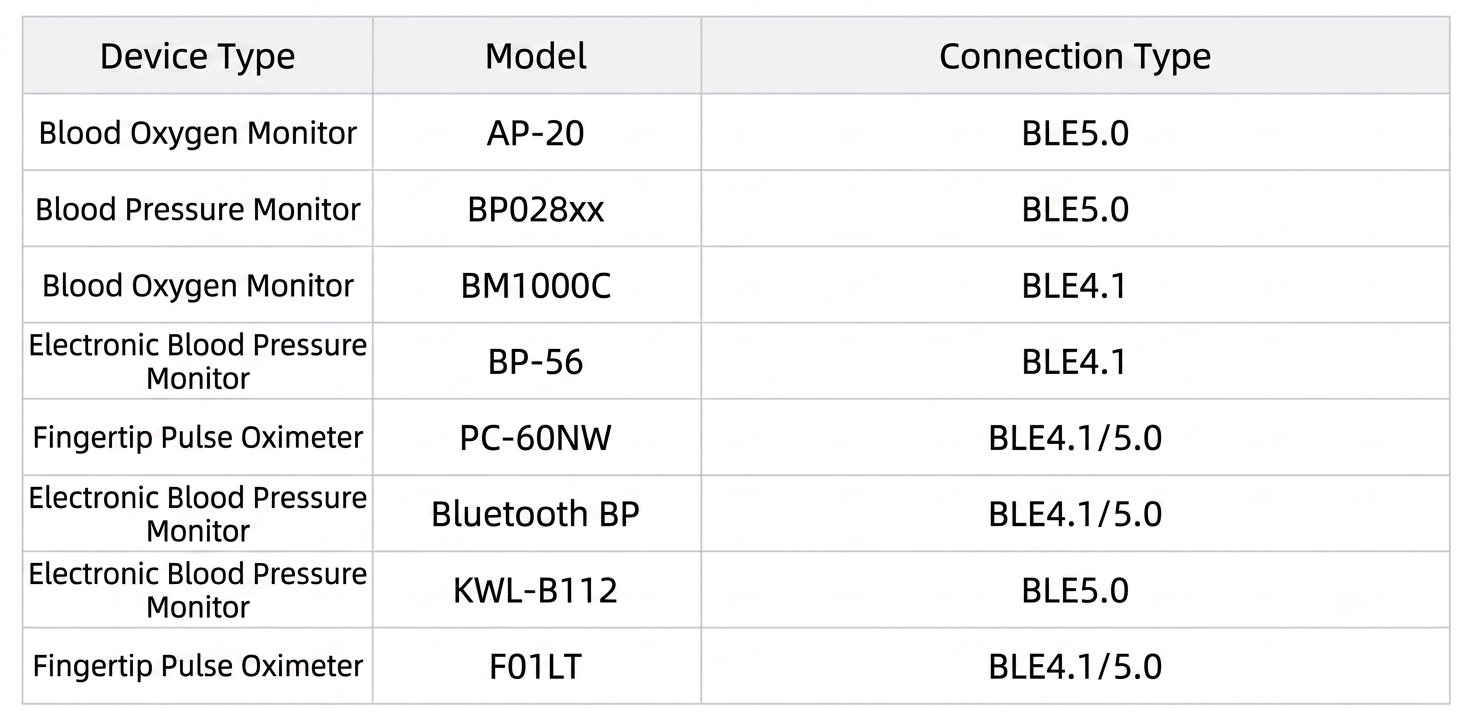

Pulse oximeters / blood pressure monitors

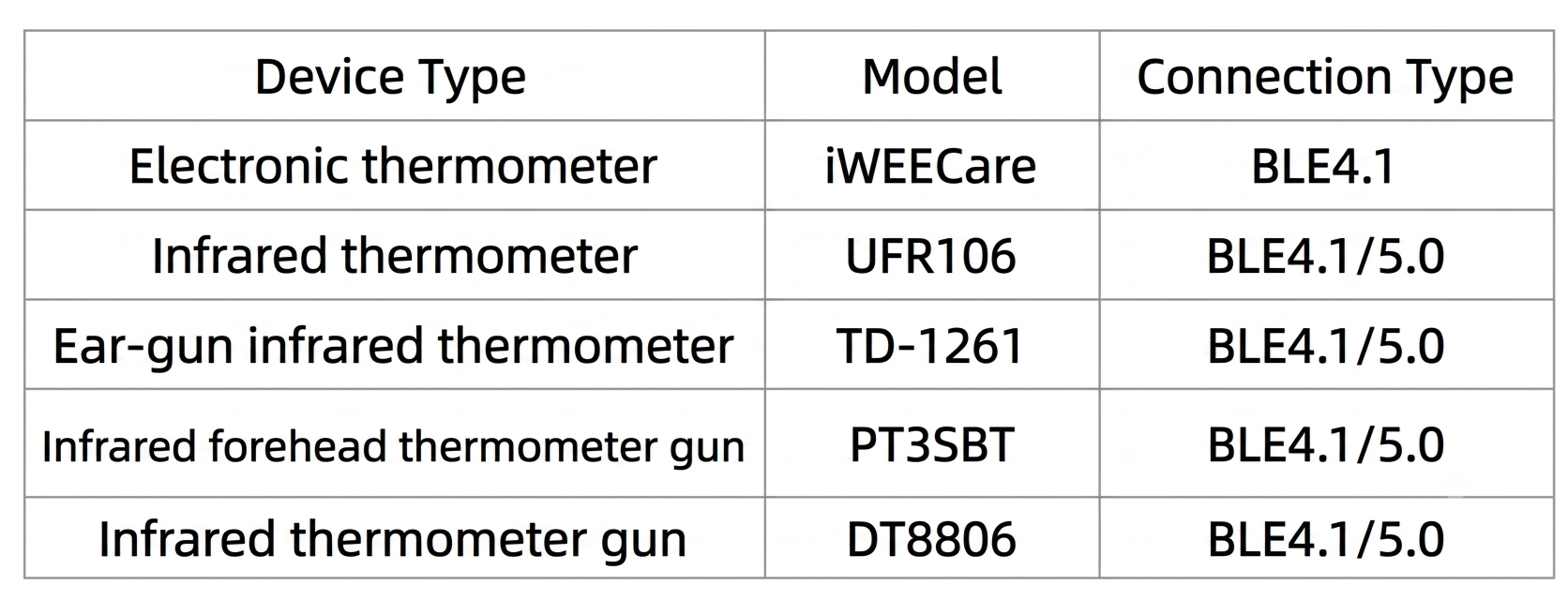

Temperature sensors

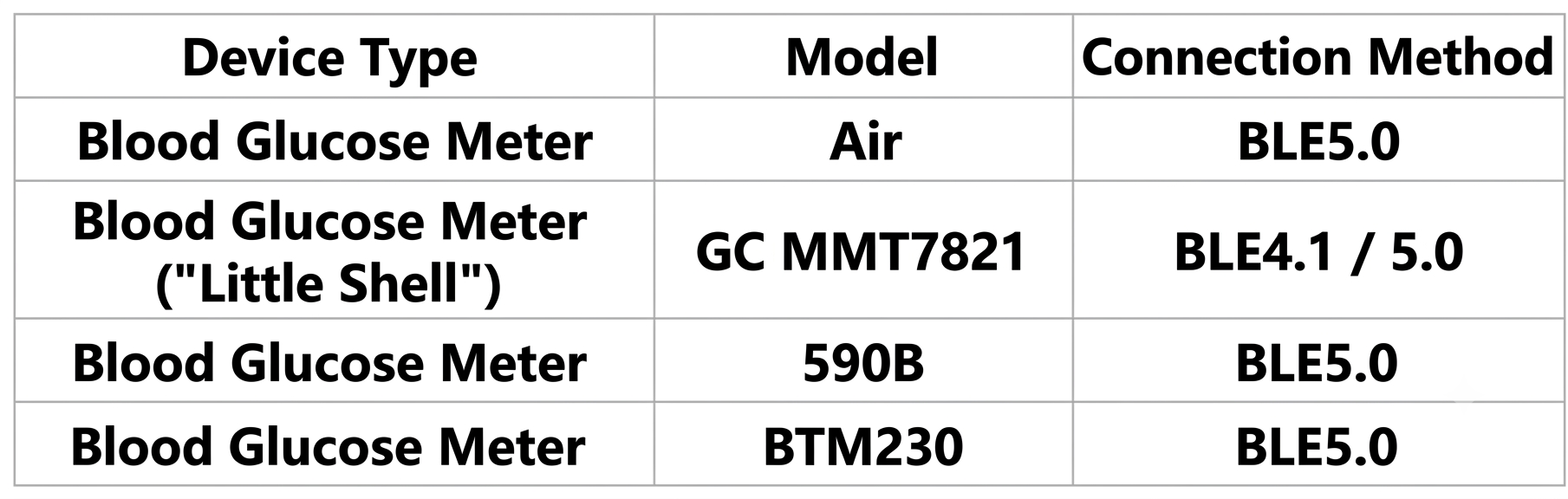

Blood glucose meters

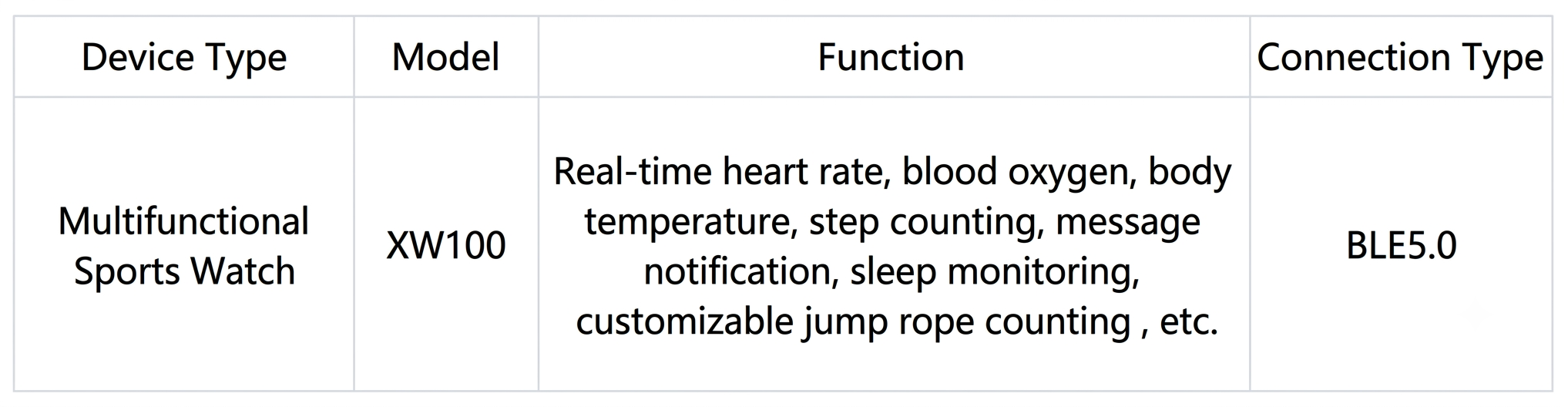

Multi-function wearables
BLE-to-WiFi Gateways: Not Chasing Device Count, Chasing Long-Term Stable Residency
This category takes a different path — end devices send data to the gateway over BLE, and the gateway forwards it to the cloud over WiFi (or Ethernet). Its positioning is clear: it's not for mobile scenarios, but for fixed deployments that already have stable WiFi or Ethernet coverage, need to stay online long-term, and require almost no hands-on management.

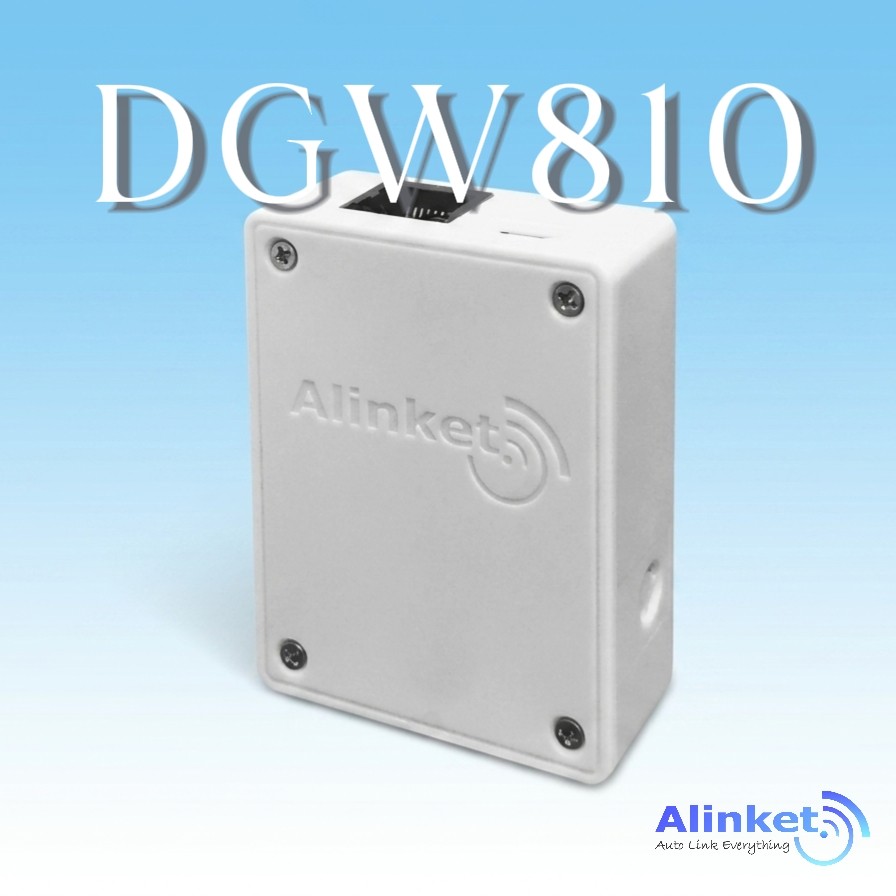

Alinket'sDGW810illustrates this positioning clearly through its specs. Its headline feature is ultra-low power design — "standby power as low as 1.2W" — rather than relying on battery life the way BLE-to-4G gateways do. The logic isn't "charge it and use it for a day," but "install it and it stays online, with almost no maintenance needed." It's paired with an ARM Cortex-M4 MCU (196KB RAM, 1MB Flash) — a chip class built for low-power embedded scenarios, which fits neatly with the "long-term residency" positioning.
One more detail worth noting: the DGW810's operating temperature range is-30°C to +80°C, noticeably wider than the typical range for comparable BLE-to-4G gateways (e.g., 0°C to +55°C). It might seem counterintuitive that a device built for "fixed installation, long-term residency" needs stronger environmental tolerance — but that's precisely the point: once installed, it could end up anywhere, and unlike mobile devices, it can't be carried back to a more controlled environment whenever conditions get rough. It also comes with a reserved Ethernet RJ45 port, meaning that in environments without WiFi but with a wired connection available, it can potentially be networked directly over cable — further reducing its dependence on wireless network quality.
Devices currently verified with the DGW810 include thedynamic ECG recorder (model HA302). Compared to the dozens of devices typically found on a BLE-to-4G gateway's compatibility list, this category generally has fewer verified use cases at this stage — but that reflects its positioning rather than a shortcoming: what this type of gateway needs to prove isn't "how broadly it connects," but "whether, once connected, it can stay reliably online long-term without dropping" — a different validation focus entirely, one that doesn't need to be measured by device count.
How to Choose Between the Two
If the deployment scenario lacks stable WiFi/wired coverage, or the device needs to be used on the move(e.g., home care, community settings, temporary medical sites, wearable scenarios) — choose a BLE-to-4G gateway. 4G networking isn't picky about the environment, and battery life covers mobile-use needs.

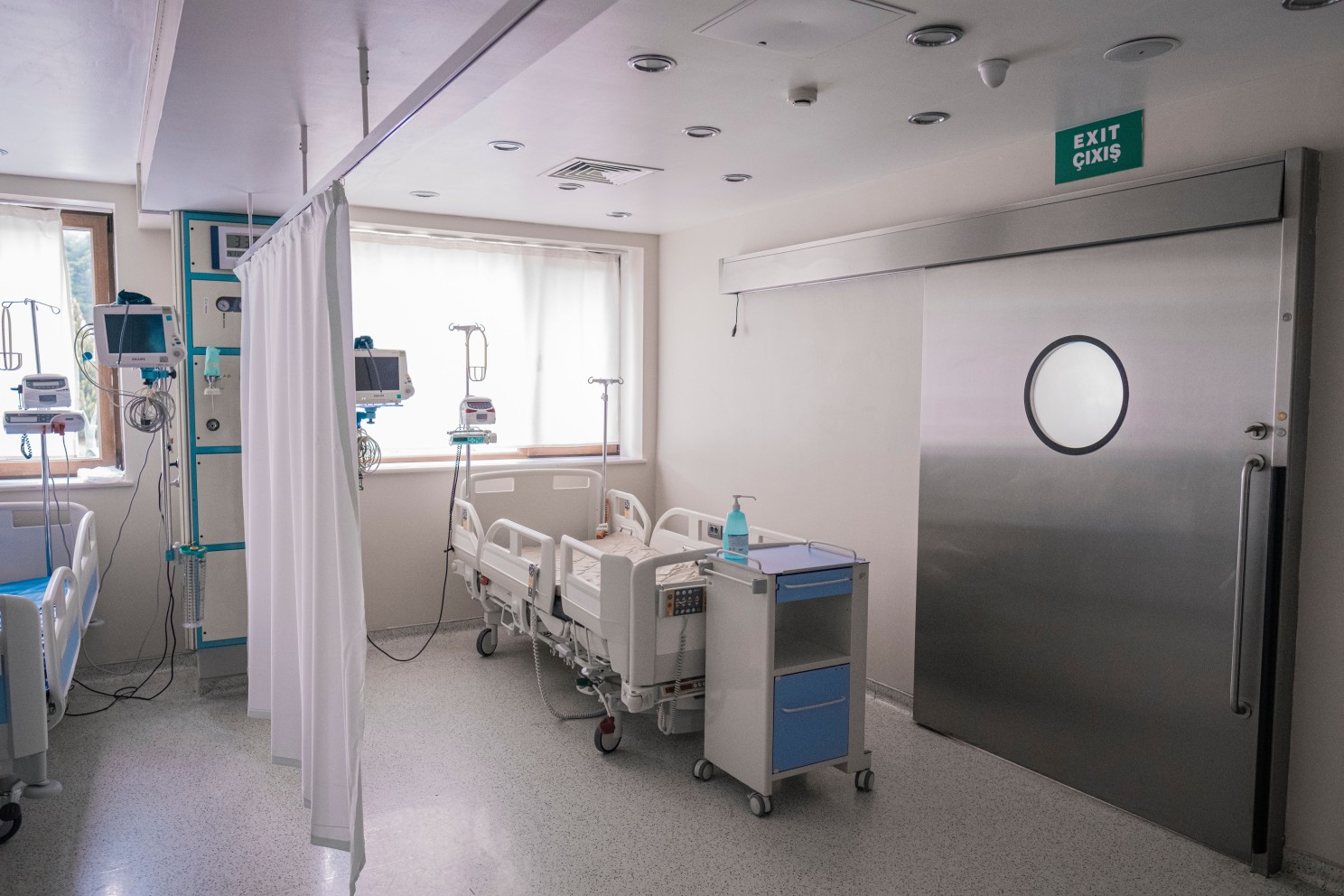

If the scenario already has stable internal network/WiFi coverage, and the device needs to stay online long-term with almost no maintenance(e.g., fixed hospital wards, long-term institutional deployment sites) — choose a BLE-to-WiFi gateway. Its low-power design is more worry-free, and its wider operating temperature range lets it handle more demanding installation environments.
At the end of the day, this isn't a question of "which gateway type is more advanced" — it's a question of "what does your deployment environment actually look like." Whether the device needs to follow people around, or gets installed once and left untouched for years, the answer follows naturally from that.
Conclusion
Whichever path you take, the underlying capabilities of both gateway types are generally the same: BLE central mode supporting multiple simultaneous slave-device connections, antenna coverage within a defined range, support for multiple cloud interface protocols (MQTT, LwM2M, HTTP, etc.), disconnection/reconnection handling, data caching, and full transparent transmission. The only real difference lies inhow the data makes its way out.
