ALX412 BLE 5.0 Controller
The ALX412 is a small, low-power, self-contained certified ble controller that provides a simple UART to BLE connection. The controller is an ideal solution for equipment manufacturers in healthcare, industrial control, home appliances and intelligent energy systems industries seeking wireless connectivity.
ALX412 BLE 5.0 Controller

ALX412 BLE 5.0 Controller

Dimension: 19mm * 13.5mm * 1.8mm
Interface: UART, SPI, GPIO, PCM
Temperature: -30°C to +85°C
Certificate: RoHS/CE/FCC
Bluetooth standard: Bluetooth 5.0
Product Details

Features

- Support Bluetooth version 5.0 - Low Power Bluetooth

- The host interface: UART

- The master-slave mode is supported. In the master mode, 6 slave devices can be connected at the same time;

- The slave-master-slave bridge function and BLE gateway are supported

- BLE MIDI, HID&HOGT(HID over GATT)

- The delay of BLE MIDI is less than 10ms

- Highly sensitive receiving PCB antenna with coverage of 50m (in open environment)

- The over the air (OTA) software upgrade is supported

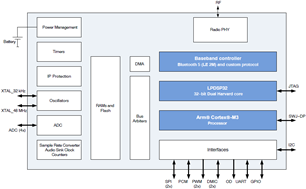

System Structure



Applications

Health care: heart rate monitoring, blood pressure monitoring, weight meter, thermometer;

Wireless charging, wireless power supply

Remote control

Positioning, distance detection, etc

Smart robots & Toys

More...
